Easy UPS 3-Phase Modular

Easy UPS 3-Phase Modular UPS is easy to select, quote, install, and maintain, with a modular architecture that enables redundant, scalable options and Live Swap of power and bypass modules with no scheduled downtime.

  • Model: EMUPS50K250PBHS: Easy UPS 3-Phase Modular 50kW Scalable to 250kW 400V Black, 4 Switches for External Battery, Start-up 5×8

  • Model: EMUPS50K250QBHS: Easy UPS 3-Phase Modular 50kW Scalable to 250kW 400V Black, 1 Switch for External Battery, Start-up 5×8

  • Power Module, 50kW, 400V, for Easy UPS 3-Phase Modular and Easy UPS 3M Advanced

Related Products

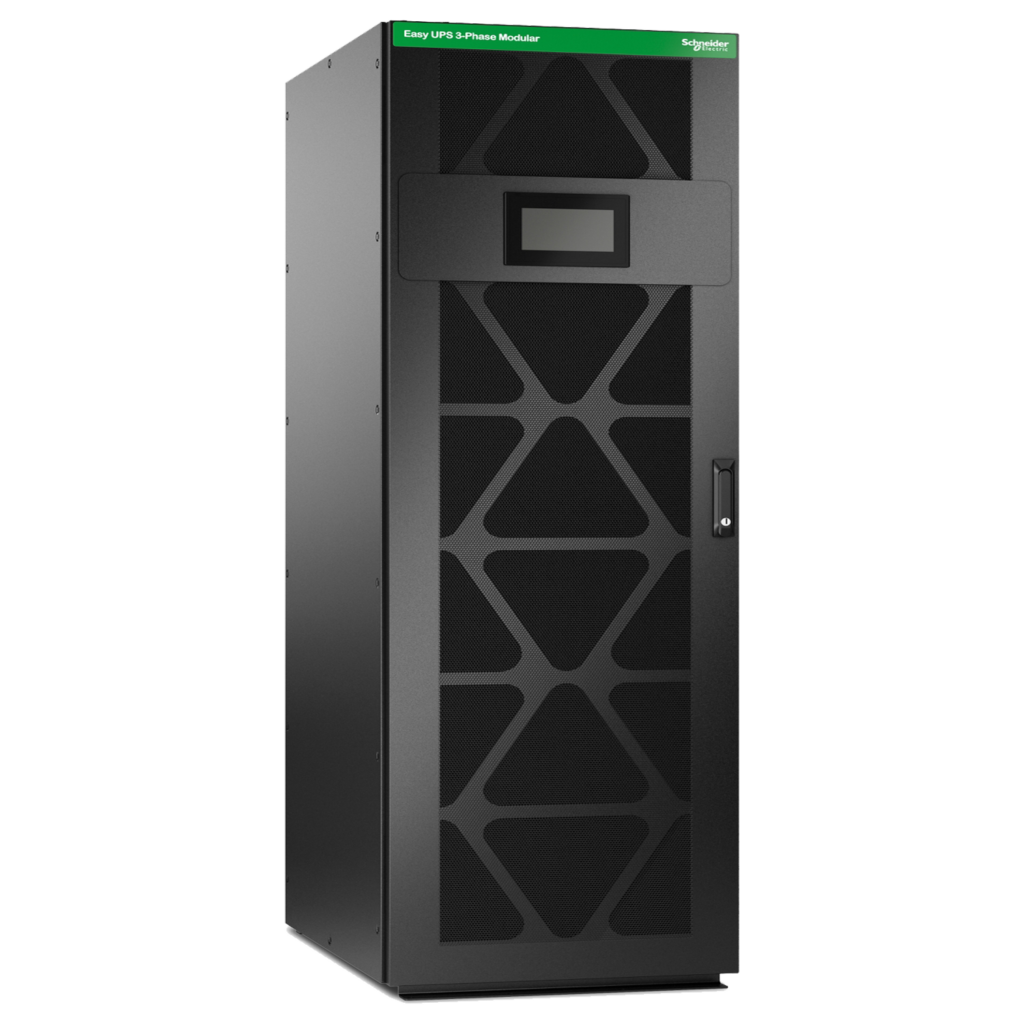

EMUPS50K250PBHS

Easy UPS 3-Phase Modular Series

Easy UPS 3-Phase Modular 50kW Scalable to 250kW 400V Black, 4 Switches for External Battery, Start-up 5×8

Model: EMUPS50K250PBHS

Main System:

  • Rated Power (kVA/kW): 50kVA/50kW
  • Main Input/Output Power in Voltage: 400V
  • Output Power Factor: 1
  • Dimensions (W×D×H, mm): 600×850×1991
  • Download: Operation Manual

Batteries & Runtime:

  • Efficiency: Upto 95.3%
  • Battery Voltage: 480V-576V (DC)
  • Max. current discharge: 130A
  • Max bypass input current: 74A
  • Main power module: 1 unit (5 power modular free slots)

EMUPS50K250QBHS

Easy UPS 3-Phase Modular Series

Easy UPS 3-Phase Modular 50kW Scalable to 250kW 400V Black, 1 Switch for External Battery, Start-up 5×8

Model: EMUPS50K250QBHS

Main System:

  • Rated Power (kVA/kW): 50kVA/50kW
  • Main Input/Output Power in Voltage: 400V
  • Output Power Factor: 1
  • Dimensions (W×D×H, mm): 600×850×1991
  • Download: Operation Manual

Batteries & Runtime:

  • Efficiency: Upto 95.3%
  • Battery Voltage: 480V-576V (DC)
  • Max. current discharge: 130A
  • Max bypass input current: 74A
  • Main power module: 1 unit (5 power modular free slots)

EMPM50KH

Easy UPS 3-Phase Modular Series

A 50kW, 400V power module compatible with the Easy UPS 3-Phase Modular or
Easy UPS 3M Advanced uninterruptible power supplies. Available as a power
module replacement or for increased capacity.

Model: EMPM50KH

Main System:

  • Rated Power (kVA/kW): 50kVA/50kW
  • Main Input/Output Power in Voltage: 400V
  • Output Power Factor: 1
  • Dimensions (W×D×H, mm): 600×850×1991
  • Download: Operation Manual

Batteries & Runtime:

  • Efficiency: Upto 95.3%
  • Battery Voltage: 480V-576V (DC)
  • Max. current discharge: 130A
  • Max bypass input current: 74A
  • Main power module: 1 unit (5 power modular free slots)
